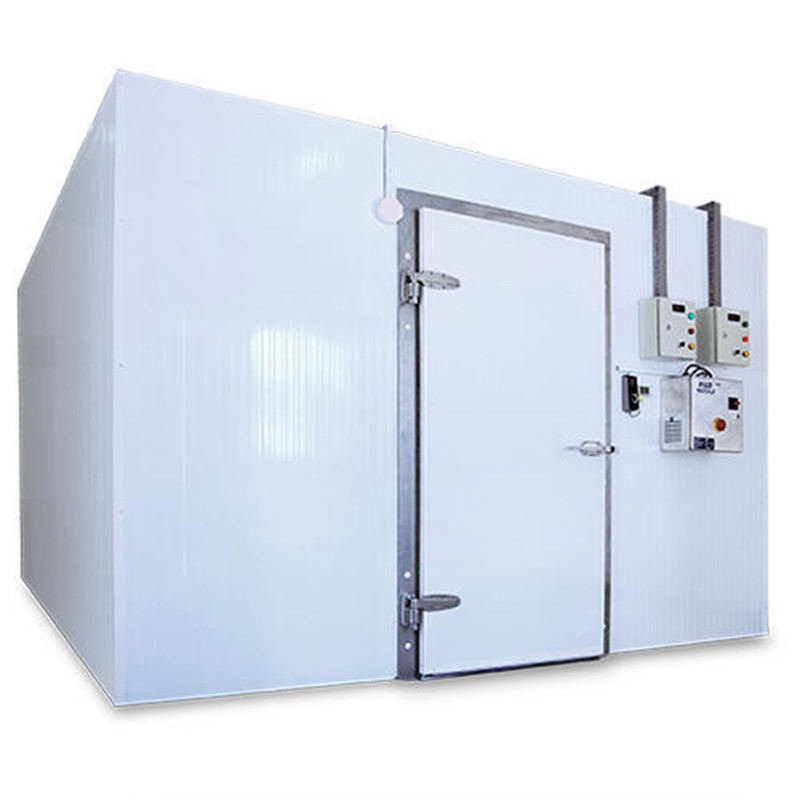

Portable cold rooms provide complete temperature-controlled preservation solutions specifically engineered for vaccine storage and transportation needs. These mobile units maintain precise temperature ranges from +2°C to +8°C for standard vaccines, with some models offering ultra-low temperature capabilities down to -80°C for specialized vaccines like mRNA-based formulations.
| Product Explanation: Featuring advanced compressor based cooling systems and high density insulation, portable solutions ensure temperature stability within ±0.2°C—critical for maintaining vaccine potency and efficacy. The vaccine storage room with modular design allows for easy transportation and rapid deployment, making them ideal for mass vaccination campaigns, remote clinics, and emergency response scenarios where traditional cold chain infrastructure is limited or unavailable. |
We need to know this information!
1: What's the dimension of a vaccine storage room: Length×Width×Height by Meter | ||||
2: What kind of goods will load inside? What's the indoor temperature? | ||||
3: What's the industry voltage? |

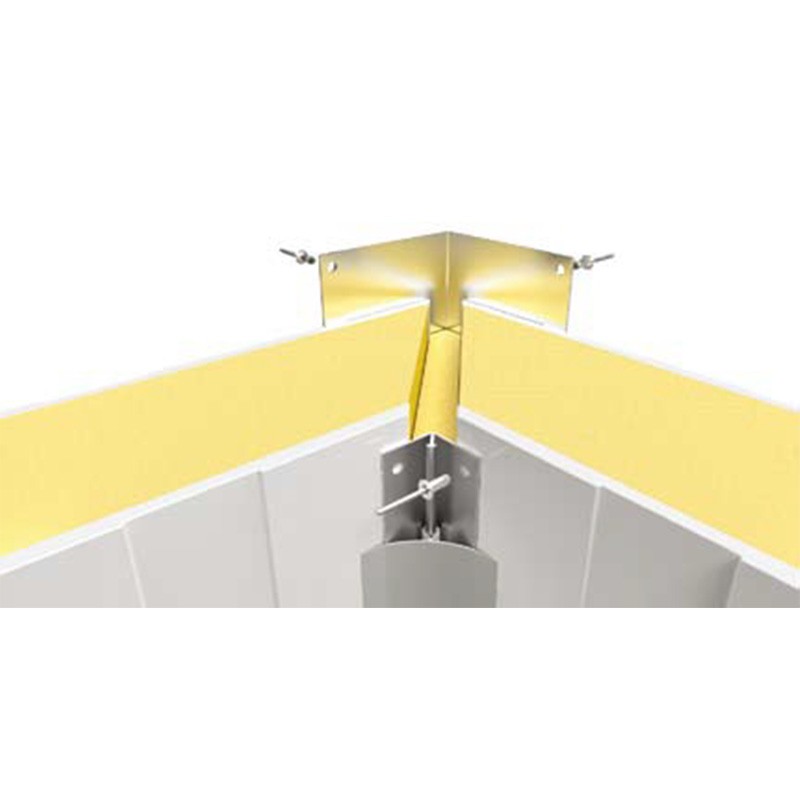

1. Cold Room Panels For Portable Cold Room
Good waterproof performance Polyurethane cold storage board with moisture and water resistance. The rigid polyurethane has a closed-cell ratio of more than 90% and is a hydrophobic material. It does not increase the thermal conductivity due to moisture absorption, and the wall surface will also seep.
Good sound insulation The porosity of the polyurethane material is stable. It has a closed-cell structure, which has excellent heat preservation performance and resistance to freezing and thawing and sound absorption.
Strong resistance to deformation Strong resistance to deformation, not easy to crack, stable and safe finish.
Fire retardant and high-temperature resistant Polyurethane is a flame-retardant self-extinguishing material after adding flame retardant. Its softening point can reach above 250 °C, and it will only decompose at higher temperatures.
Product Name | PU sandwich panel |
Surface Material | color steel(PPGI), stainless steel, aluminum |
Core material | Polyurethane foam |
PU density | 45±2KG/m3 |
Fire grade | B2 |
Width | standard width 1000mm, maximum 1050mm |
Length | Customized, maximum 11980mm |
Thickness | 50/75/100/150/200mm |
Panels thickness (mm) | Temperature gap between internal-external environment | Height of wall panel (max) | Roof length (max) |
mm | ºC | m | m |
50 | 30 | 3.5 | 2.4 |
75 | 40 | 4.5 | 3.8 |
100 | 50 | 5 | 4.5 |
120 | 60 | 5.5 | 6 |
150 | 70 | 6 | 6.5 |
200 | 90 | 7 | 7.6 |
If there is a pressure gap between the internal environment without wind load, over-length or wind-load need to set steel wall beam. | |||
Tips: the data above is figured out according to 8-10 W / heat flux. | |||
2. Condensing Unit For Portable Cold Room
Unit Cold Room Condensing Condenser Unit Evaporator Equipment For Cold Room
Yangchuan Condensing unit is the optimized combination of efficiency, reliability, easy installation, and sound performance. It is optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even more efficient and less noise impact for the neighborhood.
3. Evaporators For Portable Cold Room
Key Features

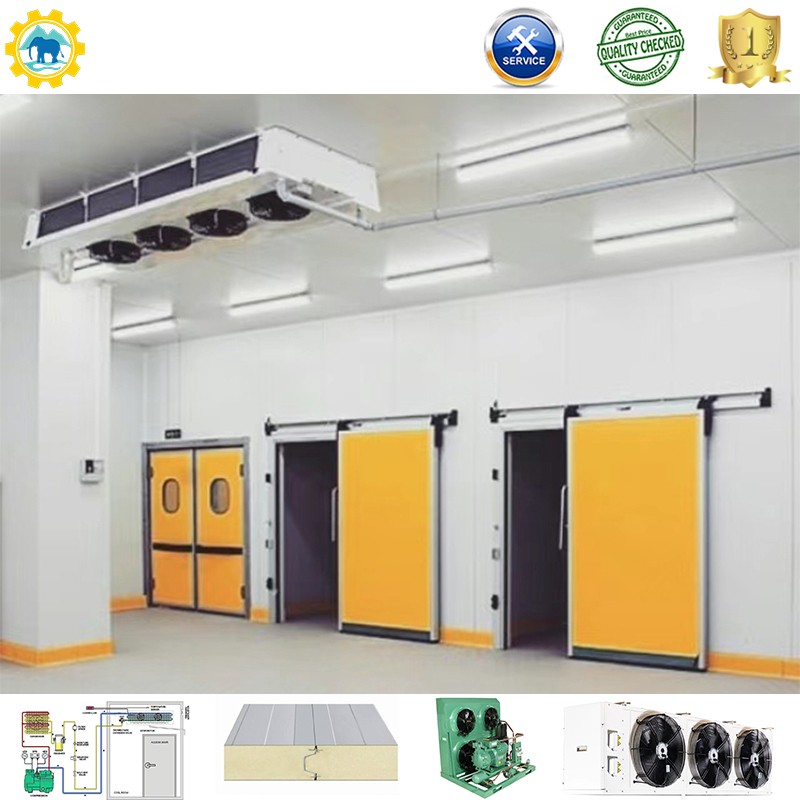

CDC/WHO-Compliant Ranges: Maintains optimal temperatures for various vaccine types: +2°C to +8°C for most standard vaccines (MMR, influenza, varicella) and -20°C to -80°C for ultra-low temperature requirements.
Dual-Zone Capabilities: Some vaccine storage room models offer separate temperature compartments for storing different vaccine types simultaneously (e.g., +4°C for most vaccines and -20°C for freeze-sensitive varieties).
Specialized Storage Configurations: Adjustable shelving accommodates various vaccine containers, vials, and pre-filled syringes with organized inventory management.

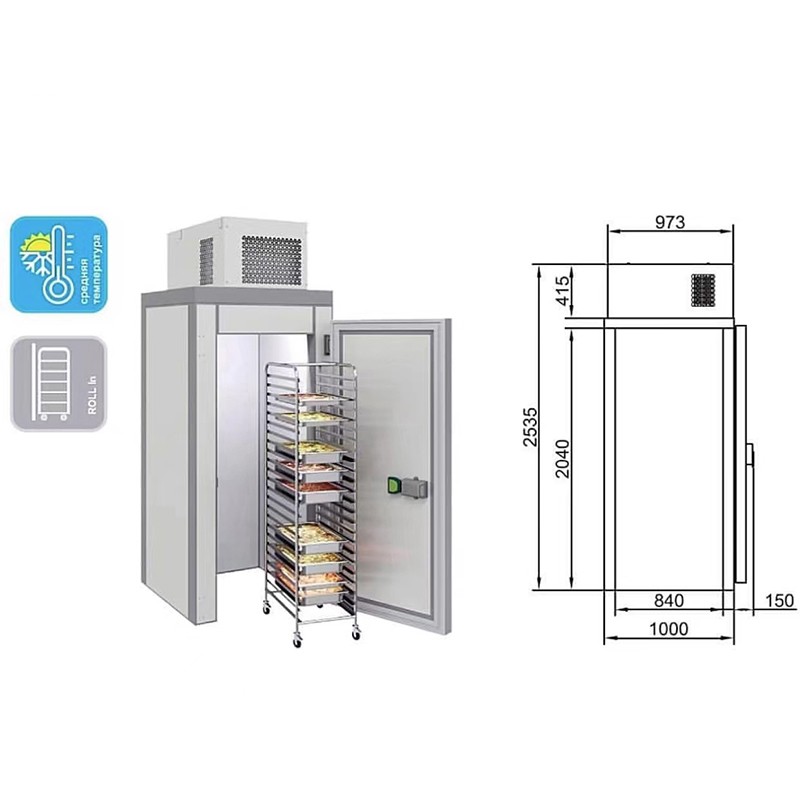

Dimension | Length(m)×Width(m)×Height(m) / FT | |||
Refrigeration unit/Condsenor unit | Famous Brand etc | |||
Refrigeration type/Air cooler/Evaporator | Air-cooled/water-cooled/evaporation cooled | |||
Refrigeration | R22,R404A,R407C,R507a Refrigerant | |||
Defrost Type | Electric defrosting | |||
Voltage | 220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional | |||
PU Panel | New material polyurethane insulation panel,45 kg/m³ | |||
Panel thickness | 50mm,75mm,100mm,150mm,200mm | |||
Type of door | Hanged door, sliding door, double swing electric sliding door, truck door | |||
Temp of room | -60°C~+20°C optional/Customization | |||
Fittings | All necessary fittings are included, optional | |||
Place to assemble | Indoor/outdoor(concrete construction building/steel construction building | |||
FAQ
1. Can you customize the cold storage room dimension and temperature?
Yes, we can customize the cold room dimensions and temperature according to your requirements.
Any size will do, if you have no idea, please tell me the total amount of your cargo, and our engineer can design it for you.
