Advantages of Monoblock Refrigeration Units

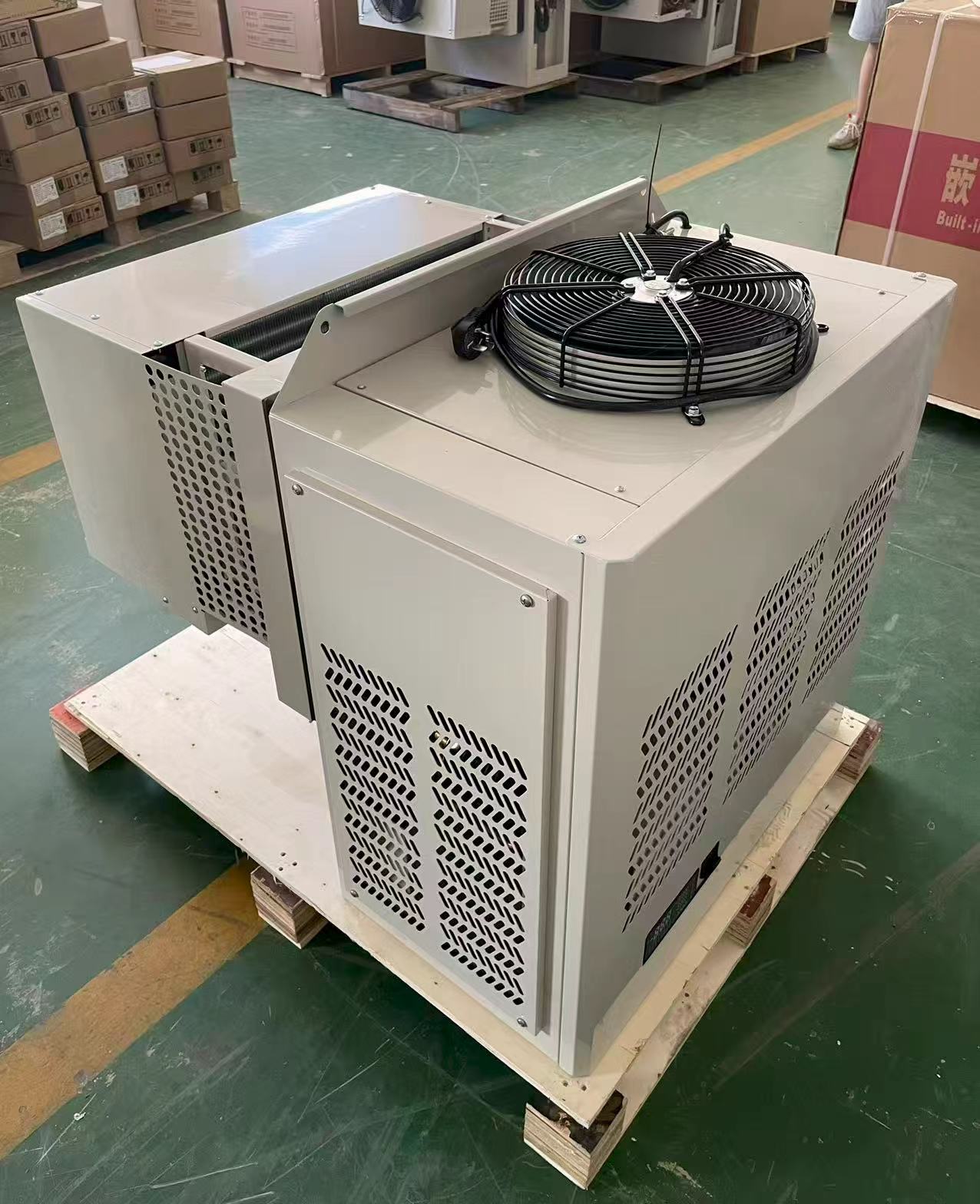

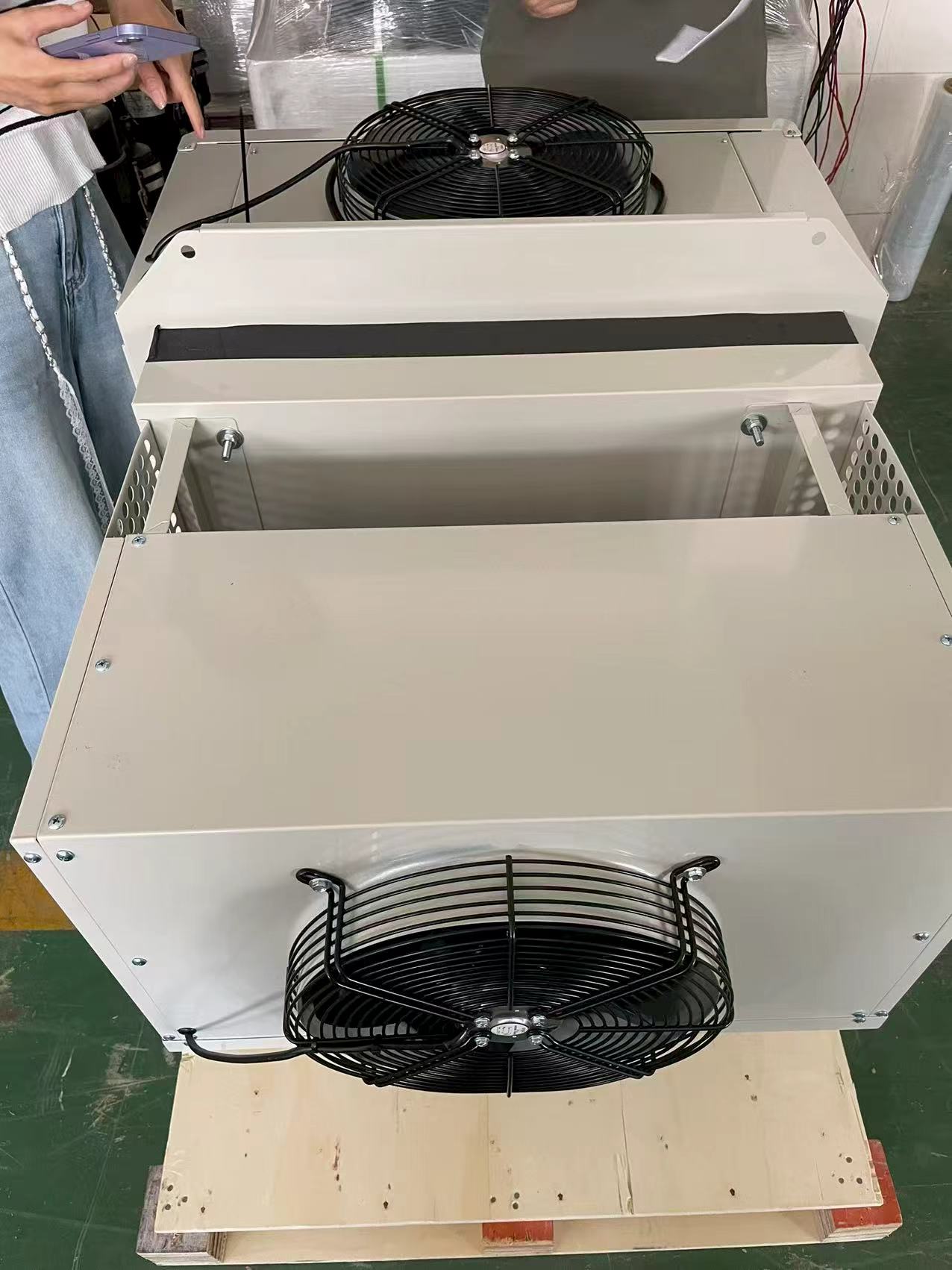

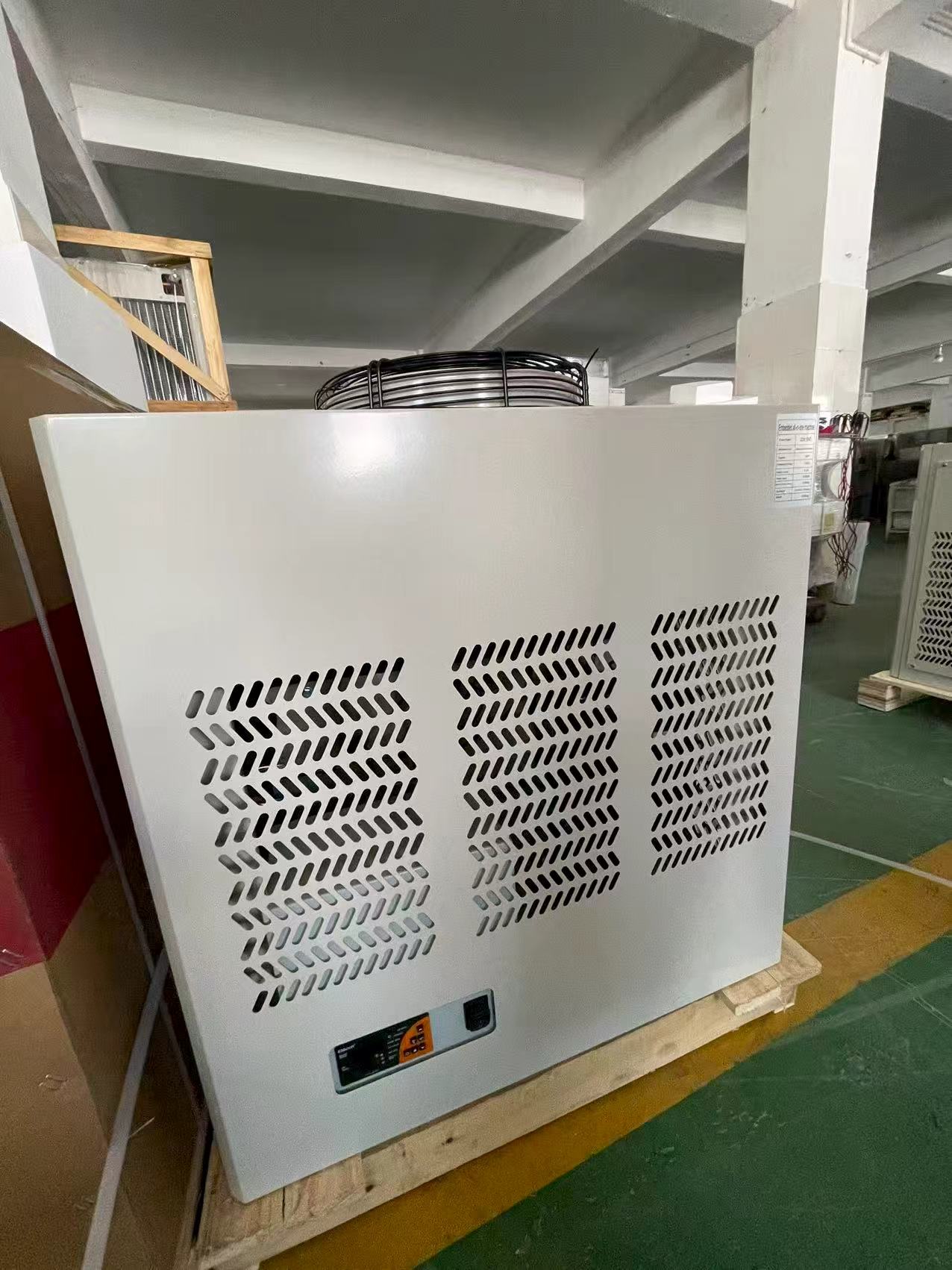

A monoblock refrigeration unit (also known as an integrated or packaged condensing unit) is a compact, self-contained system that integrates the compressor, condenser, and condenser fan into a single housing. It is widely used in small to medium-sized cold storage applications due to its simplicity and cost-effectiveness.

Key Advantages of Monoblock Refrigeration Units

The core strength of monoblock units lies in their high level of integration, which offers several practical benefits.

1. Simple and Quick Installation

• Plug-and-Play Setup: The unit is factory-assembled, piped, wired, charged with refrigerant, and lubricated. This minimizes on-site assembly work.

• Reduced Installation Skill Requirement: Installers mainly need to mount the unit, connect it to the evaporator (air cooler) via refrigerant piping, and wire the power supply. This lowers the risk of leaks from poor on-site brazing.

• Faster Project Completion: Installation time can be reduced by over 50% compared to split systems, making it ideal for urgent or time-sensitive projects.

2. Lower Initial Cost and Good Cost Efficiency

• Lower Purchase Price: As standardized, mass-produced products, monoblocks are generally less expensive than custom-assembled split systems of similar capacity.

• Reduced Installation Cost: Simplified installation translates to lower labor and equipment rental costs.

• Overall, for small to medium applications, monoblocks often offer the lowest total cost of ownership.

3. Optimized System Matching and Reliable Operation

• Factory-Matched Components: The compressor, condenser, and fan are optimally matched during design and testing, ensuring efficient and stable operation.

• Strict Quality Control: Core assembly and testing (e.g., leak testing, operational checks) are done in a controlled factory environment, ensuring higher and more consistent quality than field assemblies.

• Enhanced Protection: The enclosed or semi-enclosed housing protects internal components from dust, rain, debris, and physical damage, making it suitable for outdoor or harsh environments.

4. Easier Maintenance

• Compact Design: All key components are located in one place, simplifying inspection and maintenance tasks like coil cleaning or compressor checks.

• Simplified Troubleshooting: Technicians can often diagnose common issues more quickly with this integrated design.

5. Space-Saving and Flexible Placement

• The compact design allows for wall or floor mounting, requiring minimal space.

• No need for separate condenser placement or complex piping runs.

Primary Applications

Monoblock units are an ideal choice for:

• Small to medium modular cold rooms: Such as fresh-keeping stores (0°C to +10°C) or freezing stores (around -18°C) for hotels, restaurants, markets, or pharmaceutical storage.

• Commercial refrigerated displays: Supermarket island cases, dairy cabinets, beverage coolers.

• Cold chain transport: Refrigerated trucks, mobile cold containers.

• Small-scale process cooling: Equipment or environments requiring localized cooling.

• Emergency or temporary projects with tight deadlines.

Limitations (Compared to Large Split Systems)

Understanding the constraints helps in making the right choice:

1. Capacity and Efficiency Limits: Typically used for small to medium cooling capacities (from a few hundred watts to several tens of horsepower). Very large cold storage projects often use split systems for better scalability and efficiency.

2. High Ventilation Requirement: Since the condenser and fan are integrated, the unit must be installed in a well-ventilated location. Poor ventilation can lead to reduced efficiency, higher power consumption, and system shutdowns due to high pressure.

3. Concentrated Noise Source: The compressor and condenser fan operate in one housing, generating more noticeable noise than split systems where the noisy compressor can be isolated in a separate machine room.

4. Limited Scalability: The system is fixed. Significantly increasing capacity usually requires replacing the entire unit, unlike modular split systems where additional units can be added.

Summary

The monoblock refrigeration unit excels due to the simplicity, affordability, and reliability arising from its integrated design. It is a highly effective solution for standardized, small to medium-scale refrigeration needs, significantly lowering the barriers to cold storage setup and maintenance.

Selection Advice:

• For cold rooms under approximately 50 m² or standard commercial display cases, a monoblock is often the preferred choice.

• For very large spaces, applications where energy efficiency is critical (requiring customized high-efficiency systems), or locations with poor ventilation, a split system should be considered.

•
