BATAM, INDONESIA – In a landmark achievement for Southeast Asia’s food security infrastructure, YangChuan has commissioned a cutting-edge 1,800m³ cold storage room complex for a major meat and vegetable processing plant in Batam’s Free Trade Zone. Engineered to withstand 95% humidity and 35°C tropical conditions, this facility sets new benchmarks for hygienic food preservation while reducing operational costs by 38% through innovative energy recovery systems.

Strategic Project Overview

• Client: Leading Indonesian exporter supplying premium meats and vegetables to Singapore and Malaysia

• Core Challenges:

  • Maintaining strict temperature separation between raw meat (-25°C) and fresh produce (+4°C) zones

  • Preventing microbial growth in 90%+ humidity environment

  • Achieving 24/7 operation with unreliable grid power

• YangChuan Solution:

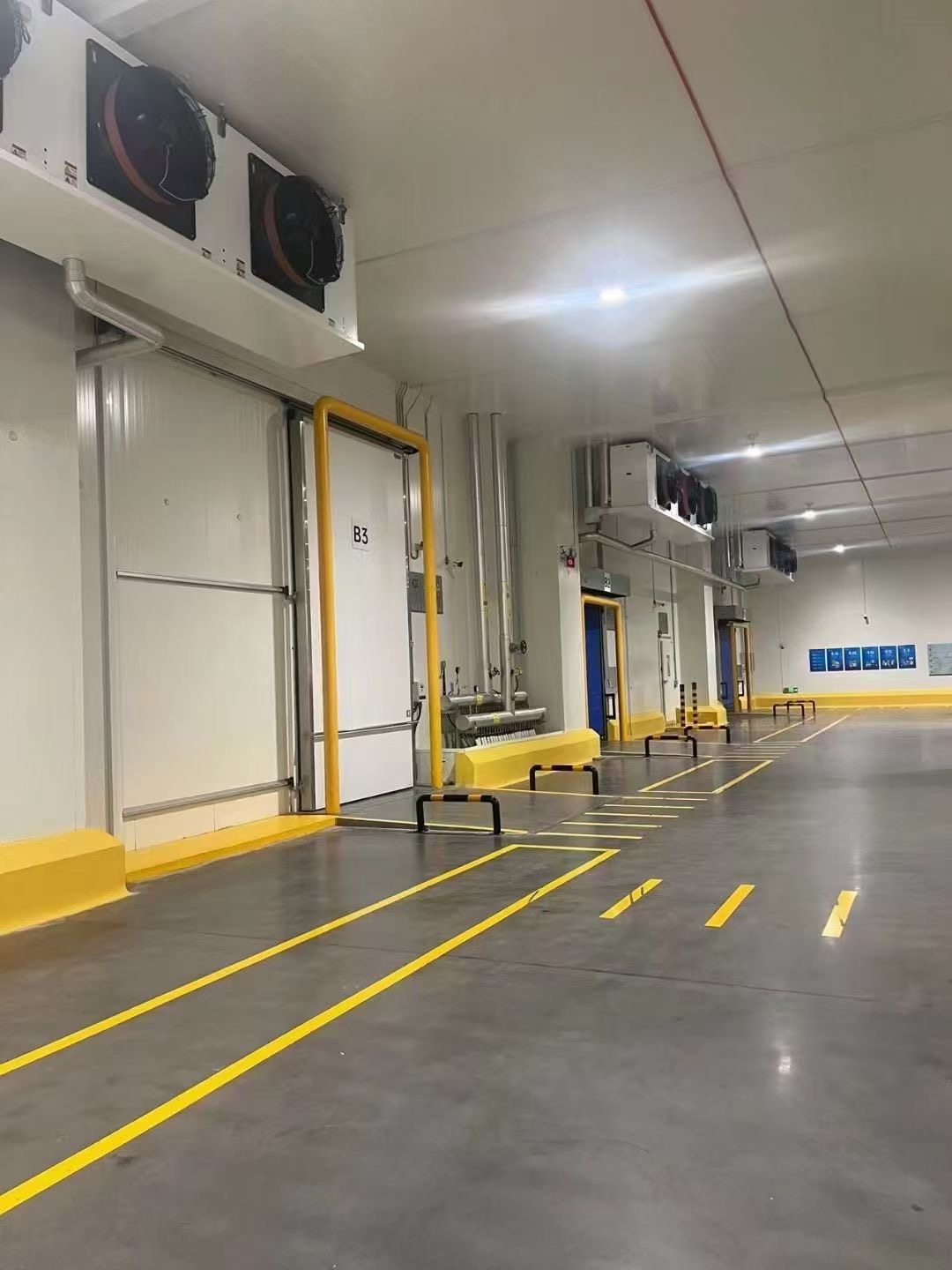

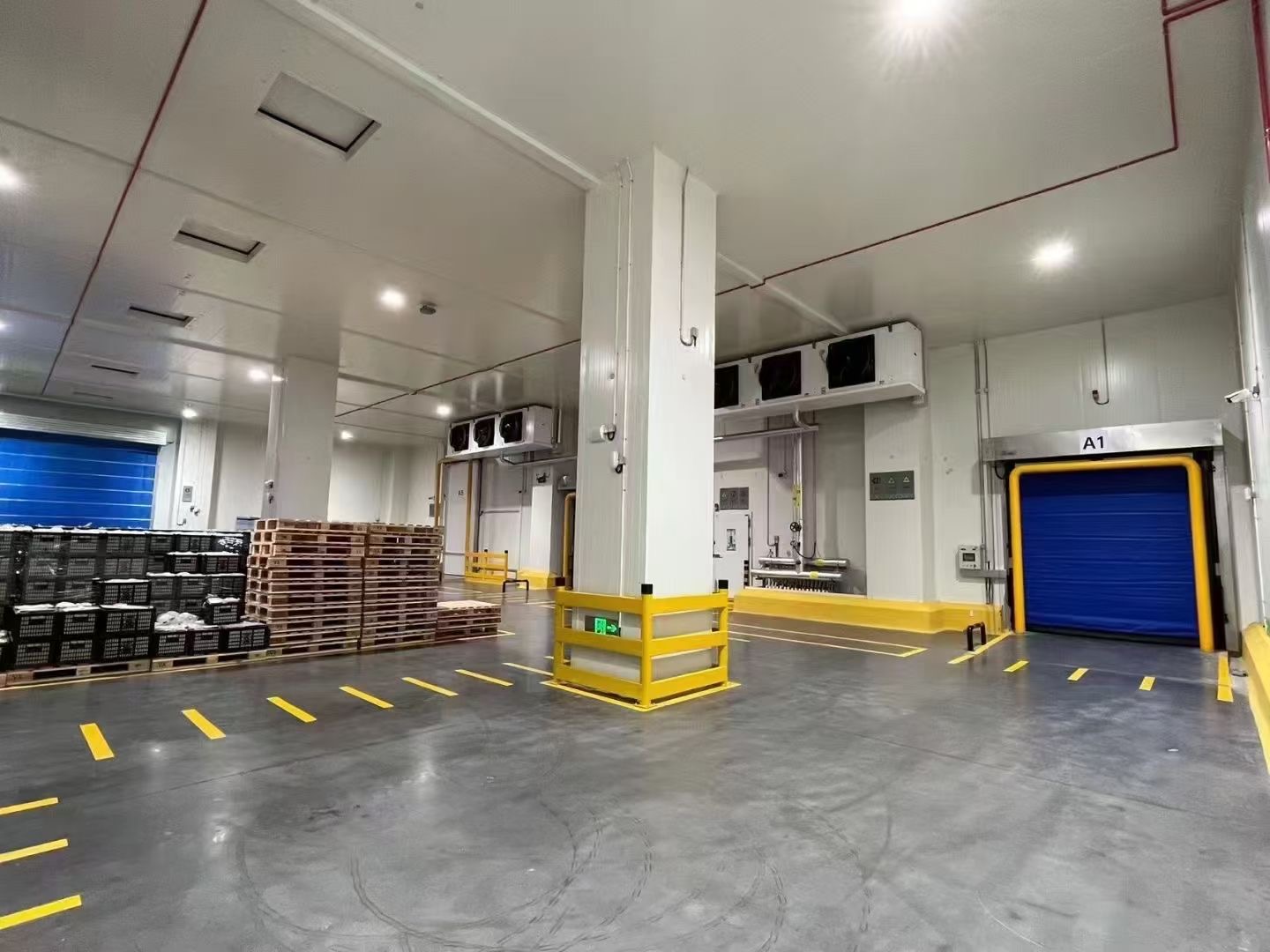

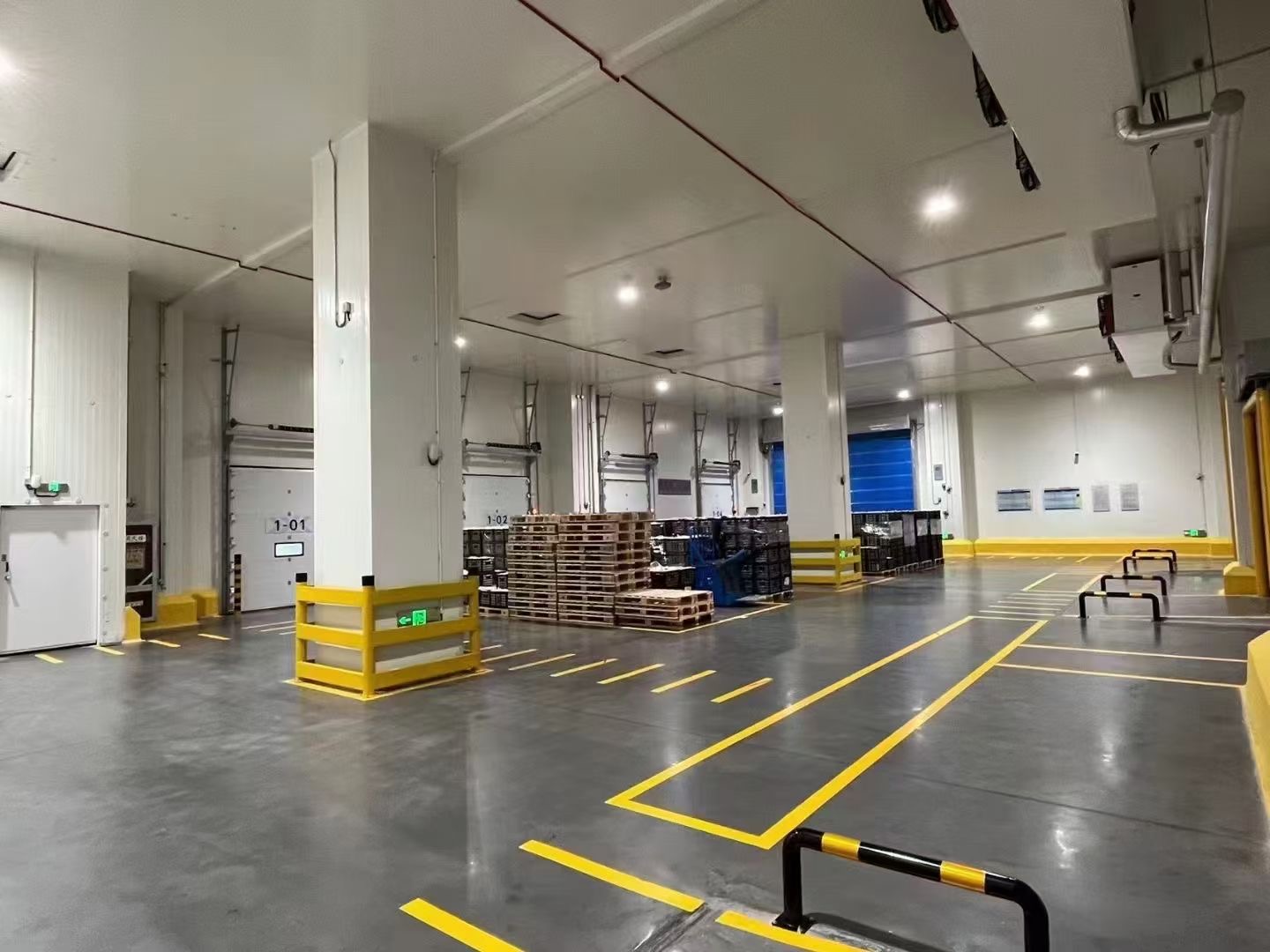

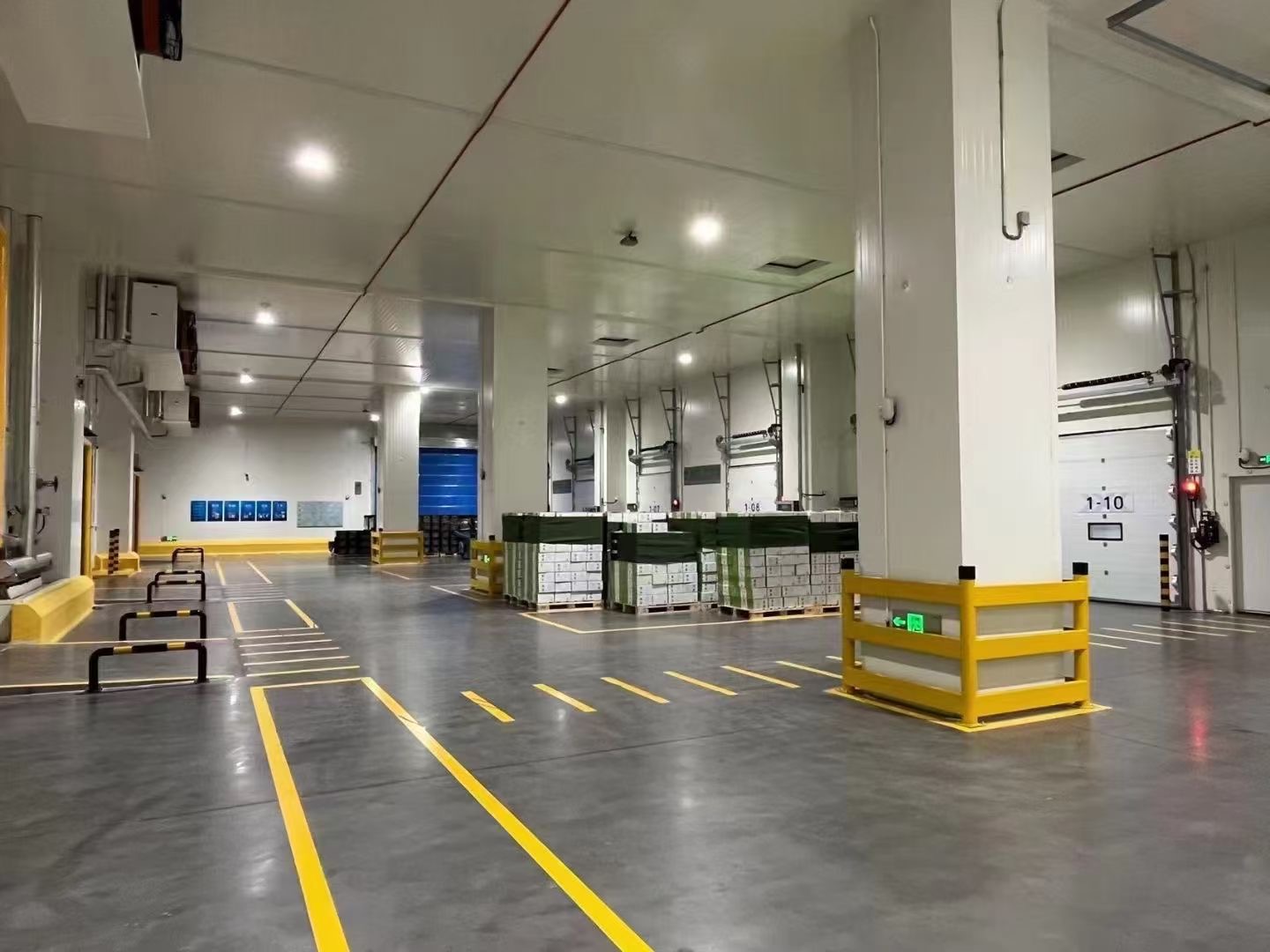

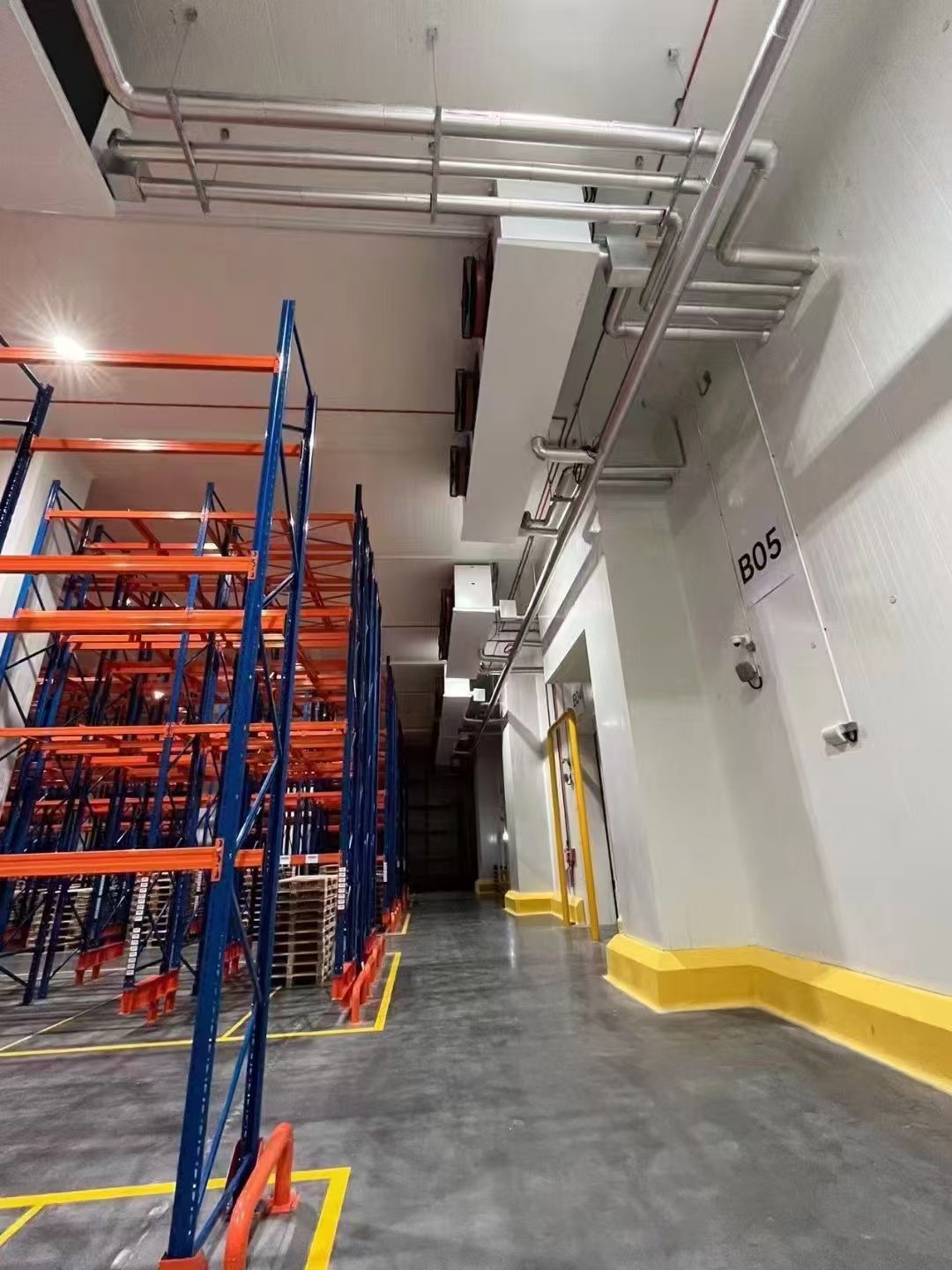

  • Dual independent cold rooms (1,000m³ frozen / 800m³ chilled)

  • 132kW hybrid cooling system with solar integration

  • Full compliance with BPOM and ASEAN GMP standards

Breakthrough Engineering Solutions

1. Tropical Climate Adaptation

• Evaporator Innovation:

  • 10 × L-type stainless steel units (6.5mm fin spacing)

  • Triple-coat anti-corrosion treatment (1,200h salt spray tested)

  • IP68-rated motors with tropicalization kits

• Humidity Control System:

  • Precision ΔT control at 5K (±0.2K)

  • Automated adiabatic humidification maintaining 95% RH in produce zone

  • Moisture-lock door systems reducing humidity ingress by 70%

2. Hygienic Zoning Excellence

3. Energy Resilience Package

• Solar Integration:

  • 120kWp rooftop PV system with 2MWh battery storage

  • 42% grid independence during peak hours

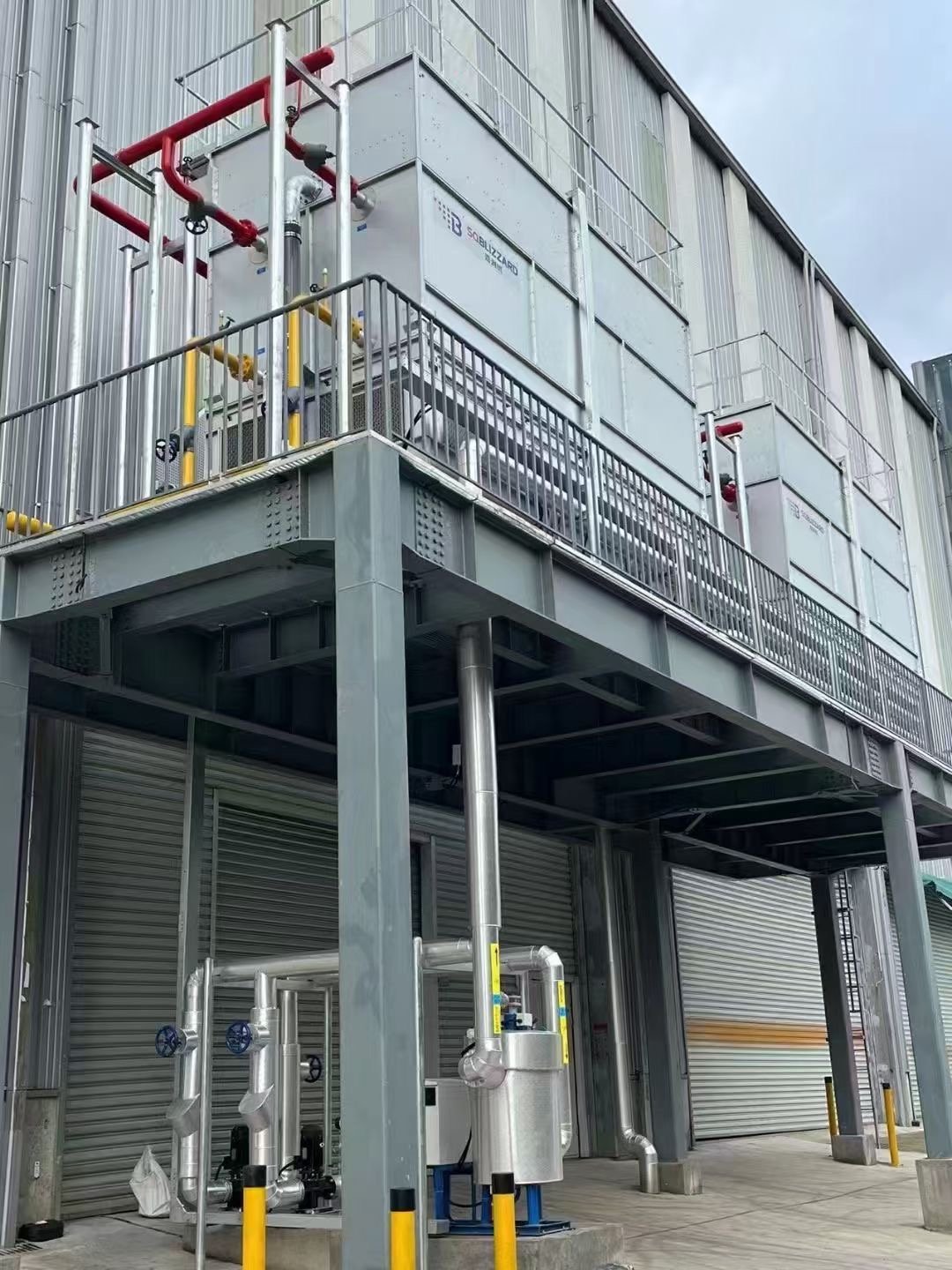

• Heat Recovery Technology:

  • Condenser waste heat repurposed for water heating (65°C output)

  • Annual savings: 185,000 kWh

• Intelligent Defrost Management:

  • Humidity-sensing hot gas defrost

  • 57% less energy than conventional timed cycles

Triumph Over Critical Site Challenges

1. Power Instability Solutions

• Voltage stabilization system handling 380V ±20% fluctuations

• Automatic generator transfer during grid failures (0.8s transition)

• Harmonic filters protecting sensitive equipment

2. Space Optimization Innovations

• Custom low-profile evaporators (2.3m height) for 4m ceiling clearance

• 3D laser scanning for millimeter-precision installation

• Retractable maintenance platforms saving 40% floor space

3. Microbial Control Breakthroughs

• UV-C air treatment units integrated with evaporators

• ATP-monitored sanitation validation system

• Positive pressure airlocks between zones

Client Validation: Transforming Operations

"YangChuan's solution reduced our product loss from temperature fluctuations by 83% while cutting energy costs by nearly 40%. Their understanding of tropical challenges and ASEAN food regulations exceeded all expectations."
– Bapak Hendra Wijaya, Operations Director, PT Surya Pangan Utama

(Image: Monitoring dashboard showing real-time energy savings and temperature stability)

Why Indonesian Processors Choose YangChuan

Regulatory Mastery

• Full compliance with BPOM No. HK.03.1.23.04.12.2205 (2022)

• Materials certified Halal (MUI) and NSF/ANSI 14159

• Automated HACCP documentation system

Localized Support

• Bahasa-speaking technical team based in Batam

• 6-hour emergency response guarantee

• Augmented reality remote assistance

Sustainable Performance

• Carbon footprint reduction: 142 tonnes CO₂e/year

• Water recycling system saving 1,200m³ annually

• R513A refrigerant with GWP 56% lower than R404A

Technical Specifications
