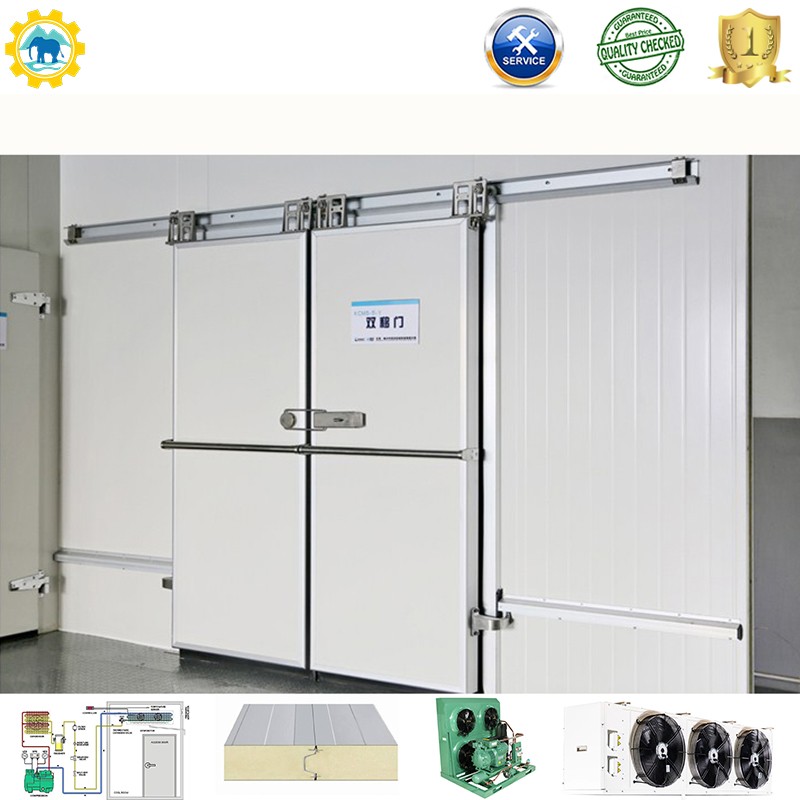

Modular freezer rooms represent the next generation of commercial refrigeration technology, offering flexible temperature-controlled environments for various industries. Unlike traditional fixed cold rooms, modular units provide exceptional flexibility through their panel-based design, allowing for easy expansion, reconfiguration, or relocation as your business needs evolve.
| Product Explanation: These versatile modular freezer room solutions serve multiple sectors including food service, pharmaceuticals, hospitality, and retail, providing reliable temperature management from chilling to deep-freezing applications. The modular approach significantly reduces installation time and costs while offering enterprise-grade performance for businesses of all sizes. |
We need to know this information!
1: What's the dimension of a modular freezer room: Length×Width×Height by Meter | ||||
2: What kind of goods will load inside? What's the indoor temperature? | ||||
3: What's the industry voltage? |
1. Cold Room Panels For Modular Freezer Room
Good waterproof performance Polyurethane cold storage board with moisture and water resistance. The rigid polyurethane has a closed-cell ratio of more than 90% and is a hydrophobic material. It does not increase the thermal conductivity due to moisture absorption, and the wall surface will also seep.
Good sound insulation The porosity of the polyurethane material is stable. It has a closed-cell structure, which has excellent heat preservation performance and resistance to freezing and thawing and sound absorption.
Strong resistance to deformation Strong resistance to deformation, not easy to crack, stable and safe finish.
Fire retardant and high-temperature resistant Polyurethane is a flame-retardant self-extinguishing material after adding flame retardant. Its softening point can reach above 250 °C, and it will only decompose at higher temperatures.
Product Name | PU sandwich panel |
Surface Material | color steel(PPGI), stainless steel, aluminum |
Core material | Polyurethane foam |
PU density | 45±2KG/m3 |
Fire grade | B2 |
Width | standard width 1000mm, maximum 1050mm |
Length | Customized, maximum 11980mm |
Thickness | 50/75/100/150/200mm |
Panels thickness (mm) | Temperature gap between internal-external environment | Height of wall panel (max) | Roof length (max) |
mm | ºC | m | m |
50 | 30 | 3.5 | 2.4 |
75 | 40 | 4.5 | 3.8 |
100 | 50 | 5 | 4.5 |
120 | 60 | 5.5 | 6 |
150 | 70 | 6 | 6.5 |
200 | 90 | 7 | 7.6 |
If there is a pressure gap between the internal environment without wind load, over-length or wind-load need to set steel wall beam. | |||
Tips: the data above is figured out according to 8-10 W / heat flux. | |||
2. Condensing Unit For Modular Freezer Room
Unit Cold Room Condensing Condenser Unit Evaporator Equipment For Modular Freezer Room
Yangchuan Condensing unit is the optimized combination of efficiency, reliability, easy installation, and sound performance. It is optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even more efficient and less noise impact for the neighborhood.
3. Evaporators For Modular Freezer Room
Dimension | Length(m)×Width(m)×Height(m) / FT | |||
Refrigeration unit/Condsenor unit | Famous Brand etc | |||
Refrigeration type/Air cooler/Evaporator | Air-cooled/water-cooled/evaporation cooled | |||
Refrigeration | R22,R404A,R407C,R507a Refrigerant | |||
Defrost Type | Electric defrosting | |||
Voltage | 220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional | |||
PU Panel | New material polyurethane insulation panel,45 kg/m³ | |||
Panel thickness | 50mm,75mm,100mm,150mm,200mm | |||
Type of door | Hanged door, sliding door, double swing electric sliding door, truck door | |||
Temp of room | -60°C~+20°C optional/Customization | |||
Fittings | All necessary fittings are included, optional | |||
Place to assemble | Indoor/outdoor(concrete construction building/steel construction building | |||
Key Features
Precision Temperature Management
Advanced digital control systems maintain temperature stability within ±0.5°C, crucial for product safety and quality preservation. Automatic defrost cycles prevent ice buildup without temperature fluctuations.
Rapid Deployment
Modular freezer rooms install in days rather than weeks required for traditional construction, with most systems operational within 5-7 days of delivery. The panel-based design allows effortless expansion by adding or reconfiguring panels, and units can be disassembled and relocated as business needs change.
Hygienic & Safety-Certified Design
Food-safe materials with easy-clean surfaces and rounded internal corners (45°) facilitate thorough cleaning, while internal safety release mechanisms, heated door frames, and slip-resistant flooring ensure operational safety. Compliance with international standards including ISO, CE, and other regional certifications provides quality assurance.
FAQ
1. Can you customize the modular freezer room dimension and temperature?
Yes, we can customize the modular freezer room dimensions and temperature according to your requirements.
Any size will do, if you have no idea, please tell me the total amount of your cargo, and our engineer can design it for you.
