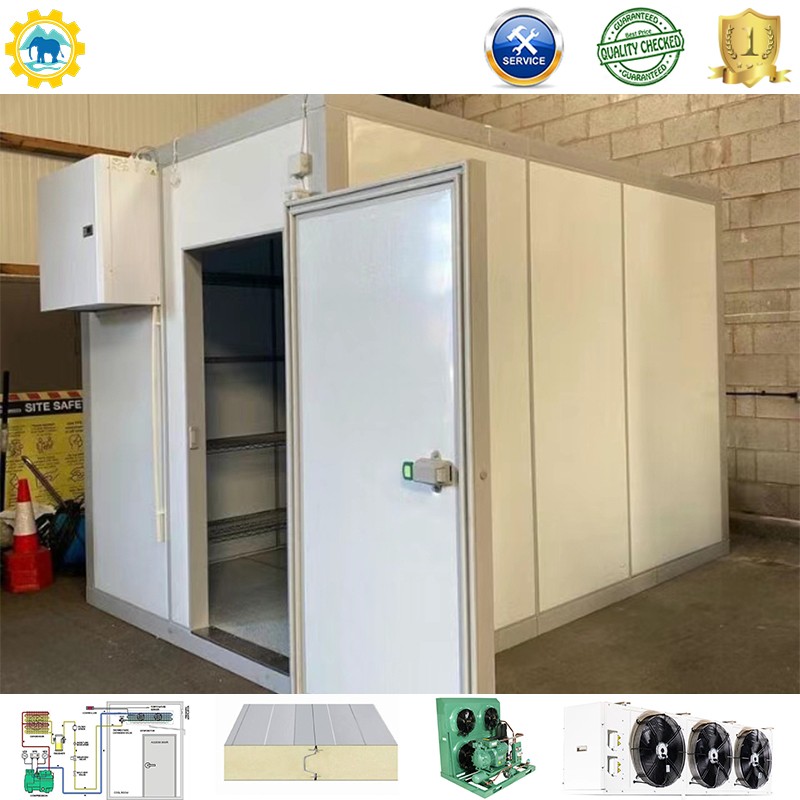

Custom frozen storage room for meat fish-Yangchuan


Product Explanation:

Low-temperature quick-freezing is the key to long-term high-quality preservation of food. Rapid cooling can make food quickly pass through the ice crystal formation zone, prevent the formation of large ice crystals in food cells, avoid damage to the cell wall, and perfectly maintain the original quality and taste of the food. The temperature of the quick-freezer is generally -15 ° C ~ -35° C. It is mainly used for low temperature and rapid freezing of food, medicine, medicine, and other items. Cooling down quickly and the preservation effect is good.

We need to know this information!

1: What's the dimension of a cold room: Length×Width×Height by Meter
2: What kind of goods will load inside? What's the indoor temperature?
3: What's the industry voltage?

1. Cold Room Panels For Cold Room
Good waterproof performance Polyurethane cold storage board with moisture and water resistance. The rigid polyurethane has a closed-cell ratio of more than 90% and is a hydrophobic material. It does not increase the thermal conductivity due to moisture absorption, and the wall surface will also seep.
Good sound insulation The porosity of the polyurethane material is stable. It has a closed-cell structure, which has excellent heat preservation performance and resistance to freezing and thawing and sound absorption.
Strong resistance to deformation Strong resistance to deformation, not easy to crack, stable and safe finish.
Fire retardant and high-temperature resistant Polyurethane is a flame-retardant self-extinguishing material after adding flame retardant. Its softening point can reach above 250 °C, and it will only decompose at higher temperatures.

Product Name	PU sandwich panel
Surface Material	color steel(PPGI), stainless steel, aluminum
Core material	Polyurethane foam
PU density	45±2KG/m3
Fire grade	B2
Width	standard width 1000mm, maximum 1050mm
Length	Customized, maximum 11980mm
Thickness	50/75/100/150/200mm

Panels thickness (mm)	Temperature gap between internal-external environment	Height of wall panel (max)	Roof length (max)
mm	ºC	m	m
50	30	3.5	2.4
75	40	4.5	3.8
100	50	5	4.5
120	60	5.5	6
150	70	6	6.5
200	90	7	7.6
If there is a pressure gap between the internal environment without wind load, over-length or wind-load need to set steel wall beam.
Tips: the data above is figured out according to 8-10 W / heat flux.

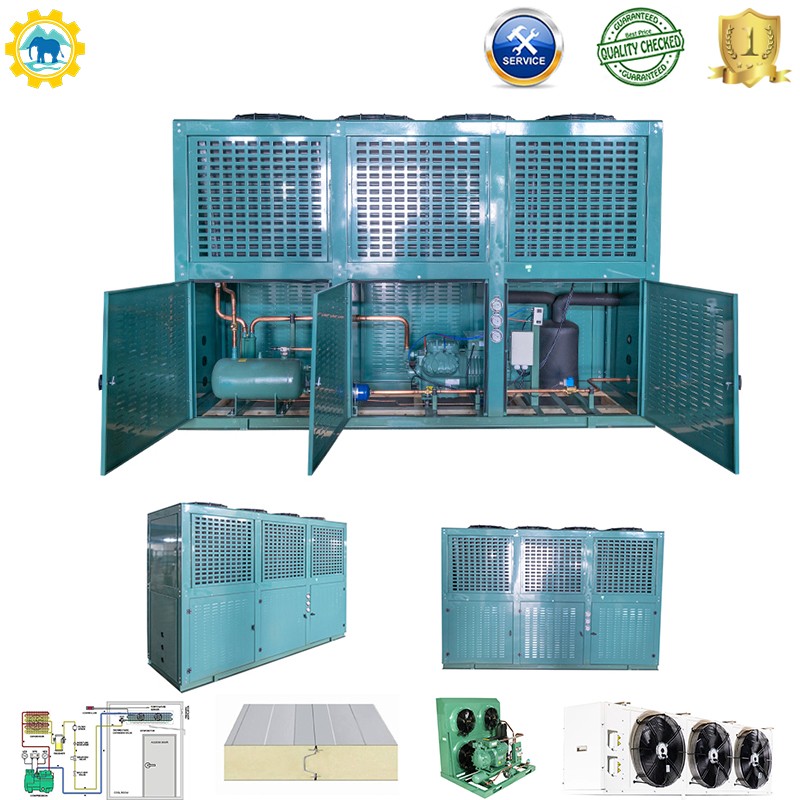

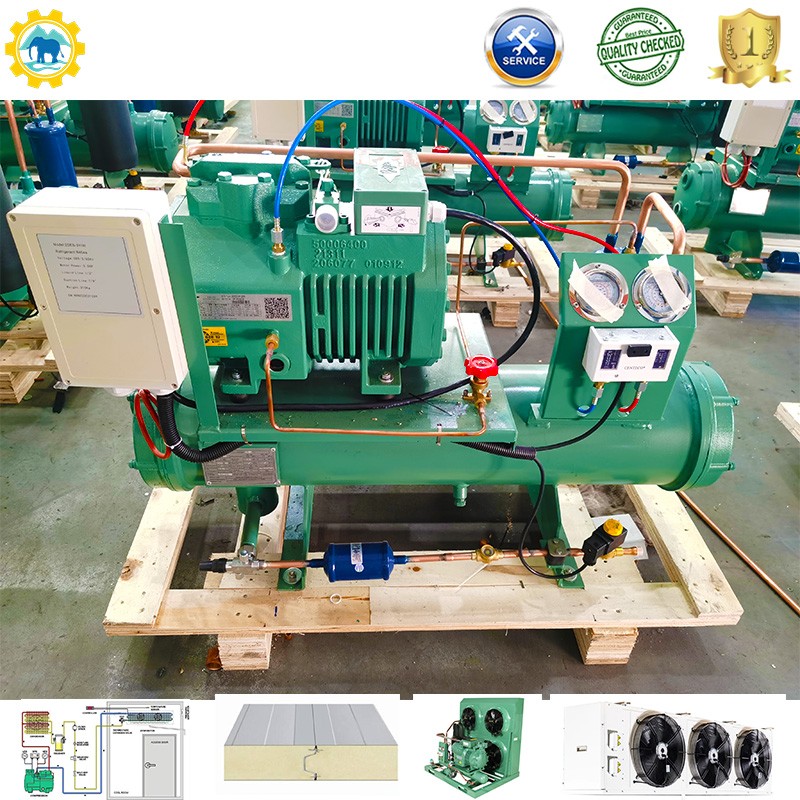

2. Condensing Unit For Frozen Storage Room
Unit Cold Room Condensing Condenser Unit Evaporator Equipment For Frozen Storage Room
Yangchuan Condensing unit is the optimized combination of efficiency, reliability, easy installation, and sound performance. It is optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even more efficient and less noise impact for the neighborhood.


3. Evaporators For Frozen Storage Room


Dimension	Length(m)×Width(m)×Height(m) / FT
Refrigeration unit/Condsenor unit	Famous Brand etc
Refrigeration type/Air cooler/Evaporator	Air-cooled/water-cooled/evaporation cooled
Refrigeration	R22,R404A,R407C,R507a Refrigerant
Defrost Type	Electric defrosting
Voltage	220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional
PU Panel	New material polyurethane insulation panel,45 kg/m³
Panel thickness	50mm,75mm,100mm,150mm,200mm
Type of door	Hanged door, sliding door, double swing electric sliding door, truck door
Temp of room	-60°C~+20°C optional/Customization
Fittings	All necessary fittings are included, optional
Place to assemble	Indoor/outdoor(concrete construction building/steel construction building

Key Features

Temperature Precision & Flexibility

Wide Temperature Range: Accommodates various storage needs from -60°C to +15°C, with specialized settings for different products:
- Fish and meat storage: -18°C to -25°C
- Blast freezing: -30°C to -40°C
- Ultra-low temperature for tuna: -60°C capability
Rapid Cooling Technology: Quickly reduces frozen storage room temperature to preserve freshness and maintain product quality

Advanced Insulation System

High-Density PU Panels: Polyurethane insulation panels with density of 38-46kg/m³ provide excellent thermal insulation
Multiple Thickness Options:
- 100mm: For temperatures above -5°C
- 120mm: For temperatures above -18°C
- 150mm: For temperatures above -25°C
- 200mm: For temperatures as low as -45°C
Superior Sealing: Cam-lock connection system with silica gel sealing prevents cold air leakage and ensures energy efficiency

Professional Refrigeration System

Brand Name Compressors: Features internationally recognized brands including Bitzer, Copeland, Danfoss, and Tecumseh
Multiple Cooling Options: Air-cooled, water-cooled, or evaporative cooled systems to suit different environments
Energy Efficient Operation: Designed for low energy consumption while maintaining consistent performance

Smart Control & Monitoring

Microcomputer Automatic Control: Digital display with automatic constant temperature maintenance
24/7 Monitoring System: Real-time temperature tracking and automatic alerts
User-Friendly Interface: Simple controls for easy operation and minimal manual intervention

Applications

Meat Storage

Beef, Lamb, Pork: Long-term preservation at -18°C to -25°C
Poultry Products: Chicken, duck, goose storage with rapid freezing capability
Processed Meats: Extended shelf life while maintaining quality and safety

Fish & Seafood Storage

Fresh Fish Preservation: Maintains texture and flavor at optimal temperatures
Seafood Storage: Suitable for various seafood products including lobster, shrimp, and specialty fish
Ultra-Low Temperature for Premium Fish: Specialized -60°C storage for tuna and other high-value fish

FAQ
1. Can you customize the frozen storage room dimension and temperature?
Yes, we can customize the frozen storage room dimensions and temperature according to your requirements.
Any size will do, if you have no idea, please tell me the total amount of your cargo, and our engineer can design it for you.

2. Can you offer refrigeration equipment?
Yes, we can offer a panel insulation system and an equipment refrigeration system.

3. What brand compressor can you offer?
Normally with original Bizter and Copeland compressor. Famous in the world.

4. How about the delivery time?
For panels, our delivery time is around 7~15 days. For equipment, our delivery time is around 25 workdays.
Time will be shorter if you are in a hurry.
