Bitzer Semi-Hermetic Piston Compressor

1. Working Principle:

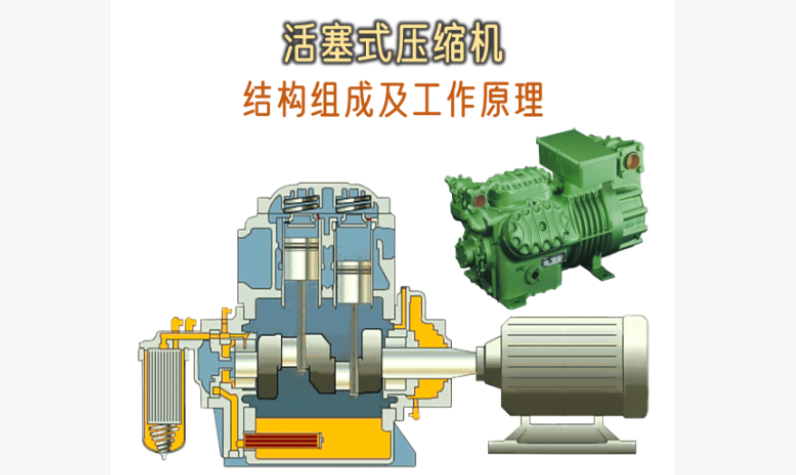

• Reciprocating Piston Action: The core of its operation is the reciprocating (back-and-forth) motion of pistons inside cylinders. An electric motor drives a crankshaft, which converts the motor's rotational force into the linear motion of the pistons. This action creates a pressure difference, sucking in low-pressure refrigerant gas and then compressing it to a high-pressure, high-temperature state before discharging it.

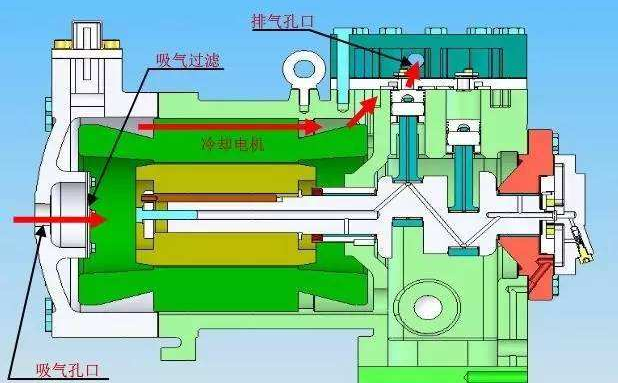

• Semi-Hermetic Sealed Design: The compressor motor and the compression mechanism are housed together within a single, bolted enclosure. This design allows the internal components, such as pistons, valves, and the motor, to be accessible for maintenance and repair by unbolting the housing, while simultaneously preventing refrigerant and oil from leaking from the system during normal operation.

2. Advantages:

• Serviceability and Durability: The semi-hermetic design is a key advantage. Unlike fully hermetic models, critical parts can be serviced, repaired, or replaced. This results in a much longer operational lifespan, reduced downtime, and lower long-term costs, as the entire unit does not need to be replaced in case of a component failure.

• High Efficiency and Robustness: These compressors are engineered for high volumetric efficiency and reliable performance across a wide range of operating conditions, especially at high pressure ratios. They are known for their robust construction, making them exceptionally suitable for demanding industrial and commercial refrigeration applications.My whatsapp/wechat-Jack: +86 13961121309
